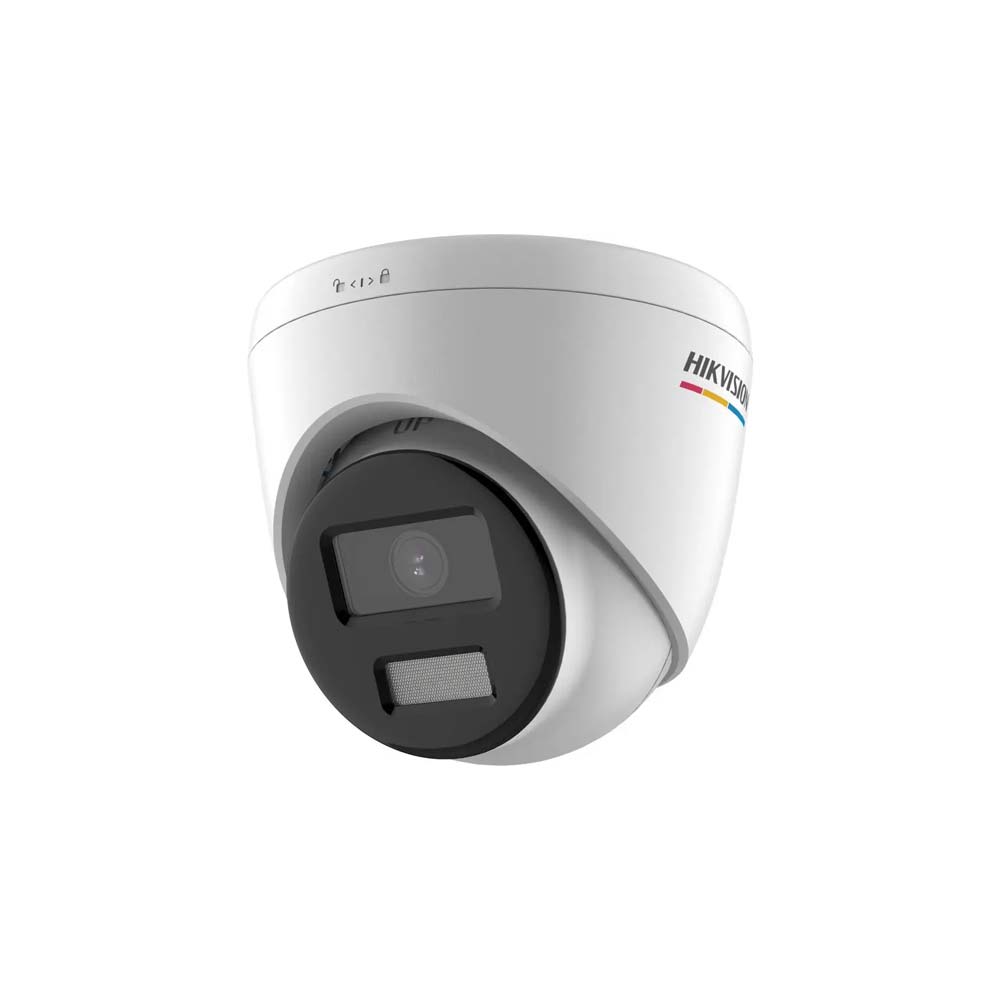

HIKVISION | CAMARA HIKVISION IP TURRET 2MP FIXED 2.8MM COLORVU 30M IP67

Cámara
Image Sensor: 1/2.8" Progressive Scan CMOS
Max. Resolution: 1920 × 1080
Min. Illumination: Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time: 1/3 s to 1/100,000 s
Day & Night. 24/7 color imaging
Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lente
Lens Type. Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV: 2.8 mm, horizontal FOV: 106°, vertical FOV: 57°, diagonal FOV: 126°, 4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99°
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.0
Depth Of Field: 2.8 mm: 1.5 m to ?, 4 mm: 2.1 m to ?

DORI
DORI: 2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m, 4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

Iluminator
Supplement Light Type: White Light
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes

Video
Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720), 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360), 60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile,Main Profile,High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR,VBR
Region Of Interest (ROI): 1 fixed region(s) for main stream

Audio
Audio Type: -U: Mono sound
Environment Noise Filtering: -U: Yes
Audio Sampling Rate: -U: 8 kHz/16 kHz
Audio Compression: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate: -U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network
Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, SSL/TLS
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
User/Host: Up to 32 users, 3 user levels: administrator, operator, and user
Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Client: iVMS-4200,Hik-Connect
Web Browser: Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+

Wide Dynamic Range (WDR): Digital WDR
SNR: ? 52 dB
Day/Night Switch: Day,Night,Auto,Schedule
Image Enhancement: BLC,HLC,3D DNR
Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask: 4 programmable polygon privacy masks

Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-In Microphone: -U: Yes
Reset Key: -F: Yes

Event
Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle),video tampering alarm,exception
Linkage: Upload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture

General
Power: 12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Material: Metal & Plastic
Dimension: Ø109.9 mm × 103.6 mm (Ø4.3 × 4.1\")"
Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight: -L: Approx. 370 g (0.8 lb.); -LUF: Approx. 380 g (0.8 lb.)
With Package Weight: -L: Approx. 600 g (1.3 lb.); -LUF: Approx. 620 g (1.4 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: English, Ukrainian
General Function: Heartbeat,anti-banding,mirror,password protection,password reset via email

Approval
EMC: FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, KC: KN32: 2015, KN35: 2015
Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection: IP67: IEC 60529-2013
